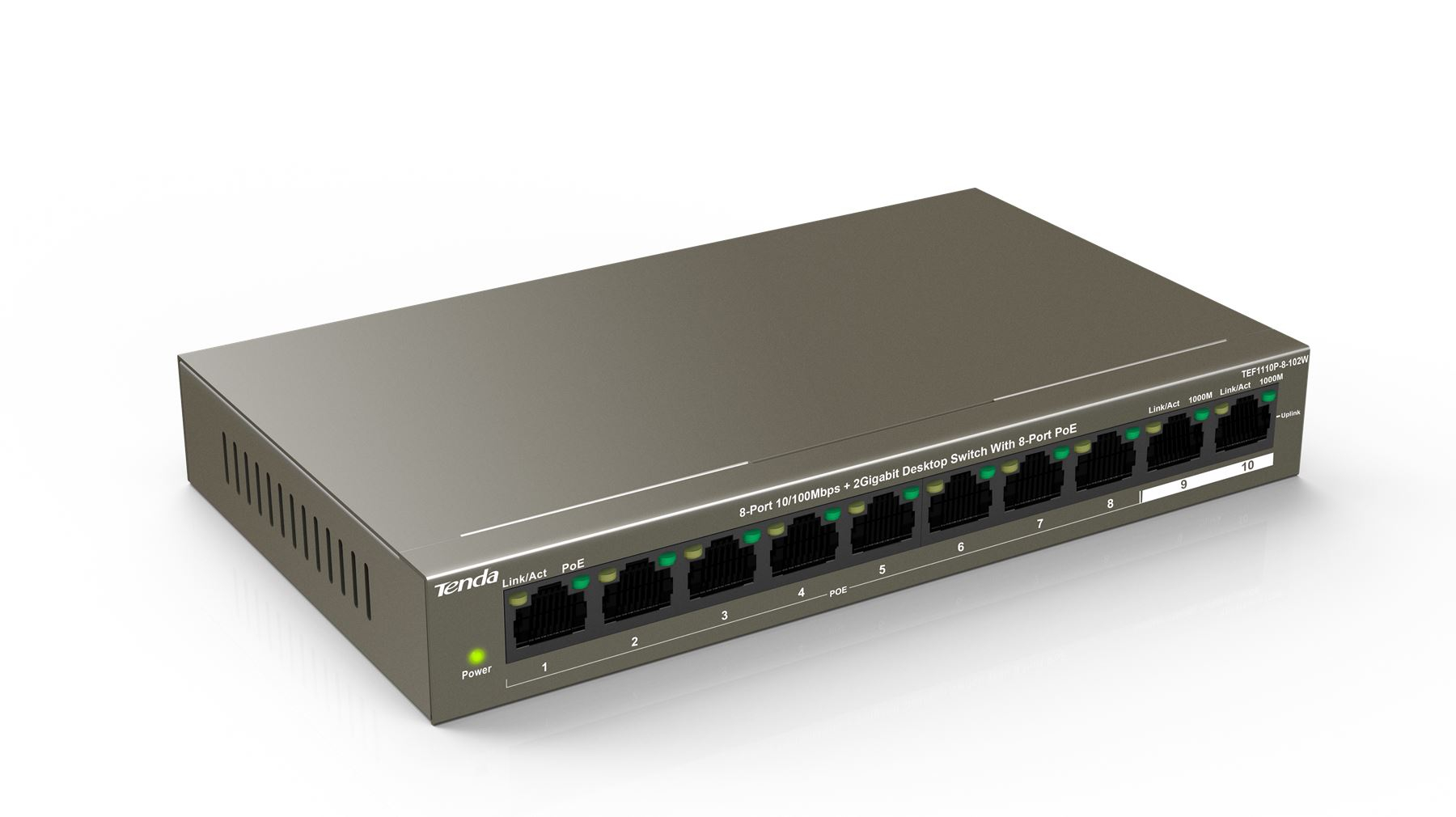

Tenda10-Port Ethernet Switch with 8-Port PoE (Model: TEF1110P-8-102W)

About

This must have tech device has network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit.

With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum power supply of 30W to each port and 99W to the whole device. Meanwhile, it provides dual gigabit uplink port to meet the needs of more equipment cascading and access.

Product Features

• 8-Port10/100BASE-TX RJ45 ports, 2 10/100/1000BASE-T RJ45 ports
• 6KV lightning protection
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 30.8 watts for each PoE port
• Each port supports 51V DC power to PoE Powered Device
• 99-watt PoE budget
• Extend Ethernet mode with 250m transmission distance
• Plug and play design
• No configuration required

Product Specifications

• Standard: IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
• MTBF: ≥50,000 hours(about 5 years)
• Indicators: Link/Act, PoE Status, Power, 1000M
• Fixed Ports : 8*10/100Base-TX RJ45 Ports(Data/Power)  / 2*10/100/1000Base-T RJ45 Port(Data)
• Lightning protection: 6KV
• Wire-speed forwarding: Support
• Switching capacity 5.6 Gbit/s
• Mac Address Table: 16K MAC
• PoE Supply Management: Port 1 to Port 8 support standard IEEE802.3at/af power (maximum power for each port is 30W) / PoE power type is end-span(1245+, 3678- line pair) /in full configuration: <102W
• Imput Voltage: AC: 100-240V / DC: 51V/2.1A
• Dimensions: 177.5mm x 104mm x 26mm
• Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Storage Humidity: 5%~90% non-condensing
• Operating Humidity: 10%~90% non-condensing
• One-key Mode: 3C、FCC、CE、RHOS
