FODHands Free Foot Operated Device

About

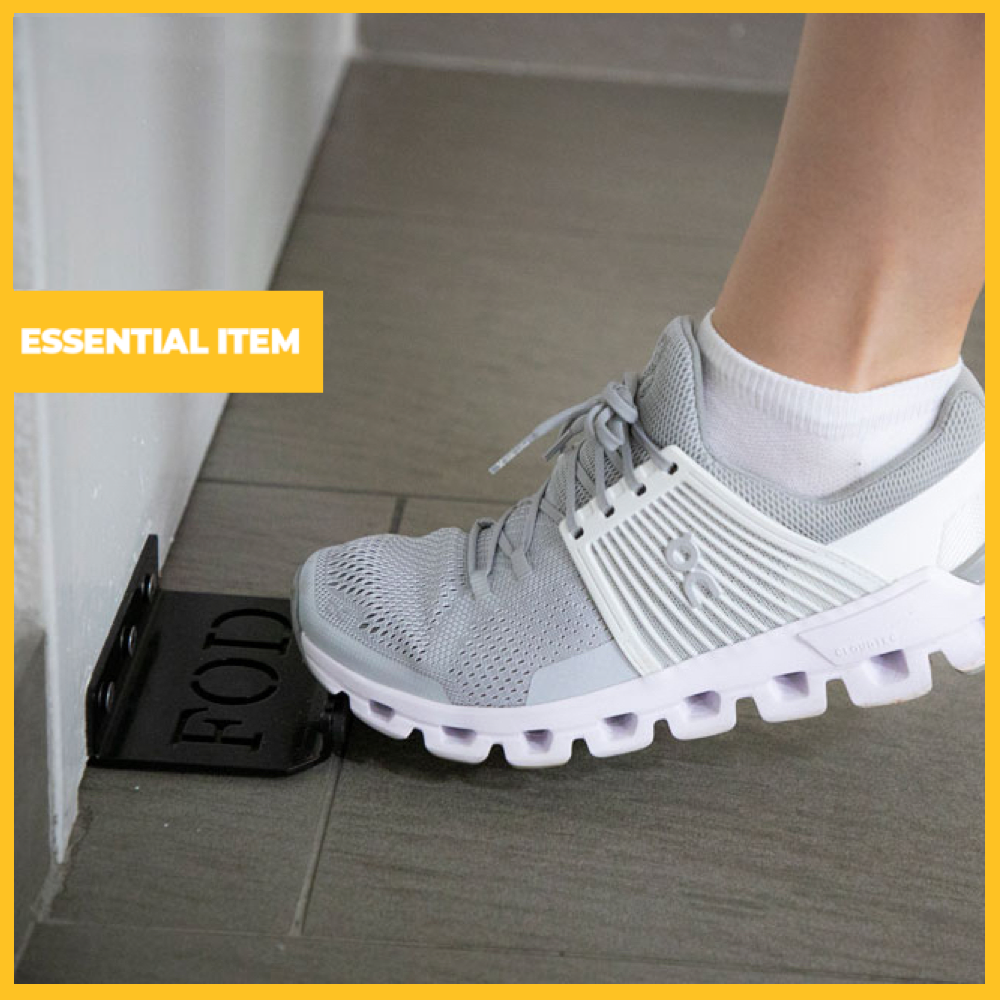

FOD is an innovative product that allows one to open any existing latch-less door without the use of their hands. With FOD, you can enjoy an improved hygienic and satisfactory bathroom experience without havinig to open doors with bare hands, paper towels and parts of clothing.

How to install?

• Place the base piece of the FOD product 2mm above the bottom of the door.
• Check that your piece is level before making the drill markings.
• Make markings on the three drill hole areas. Be sure to keep the unit level.
• Use a 6mm drill bit to drill the 3 holes on which the part will be secured to the door.
• Place the 3 bolts through the base plate and drilled holes.
• Attach the back plate, ensure the device is level and tighten the bolts.
• Finger tighten the bolts, then use the supplied allen key as well as a hex tool to secure the bolts.
• Apply the instructional decal to the door, to inform users that the door had a Foot Operated Device.
• Enjoy using your new Foot Operated Device.

Product Features

• Easy installation and use.
• The weight integrity of the door will not affect whether FOD will work or not.
• The force that the client applies to the device will affect the intensity at which the door opens.
• Excessive weight applied to the device will affect the ability to open the door.
• Excessive weight will cause the device to make contact with the floor protecting both the door and the device from failure.
• Balanced can easily be maintained due to the device being mounted as low as possible to the door, allowing a full range of motion and a controlled pull.

Product Specification

• The main plate dimensions: 116mm x 84mm
• The back plate dimensions: 116mm x 30mm
• The box dimensions: 150mm x 125mm
• It is incredibly easy to install or remove.
