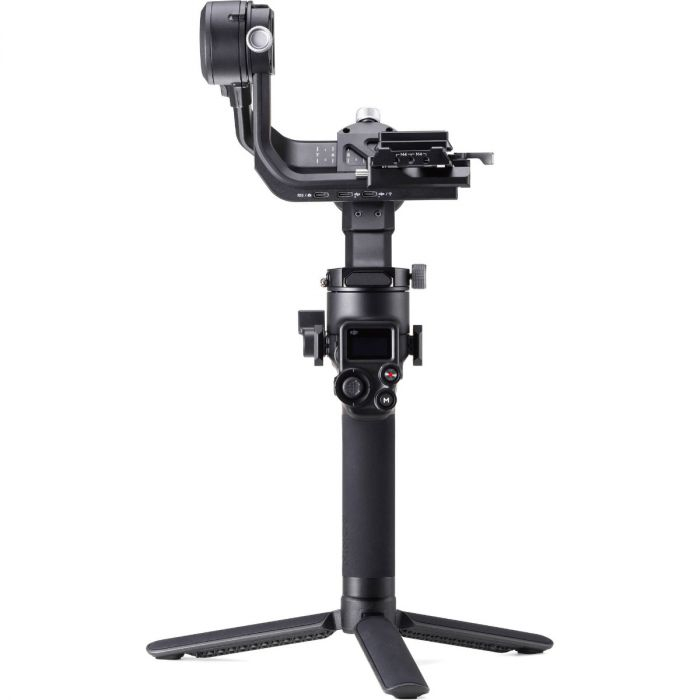

DJIRonin SC 2 3-Axis Handheld Gimbal

About

Filmmaking unfolds. Professional-level results are effortless with DJI Ronin SC 2. This compact stabilizer for mirrorless and DSLR cameras features a foldable design and intuitive features, empowering filmmakers, one-man crews, and content creators everywhere. The standalone DJI Ronin SC 2 has everything you need to get started.

Product Features

Foldable, Compact, Amazing

• DJI Ronin SC 2’s foldable design means easy transportation and storage, along with expanded shooting options. Get creative with it's six configurations, delivering versatility that simplifies even the most complex shots. And when folded, Ronin SC 2 is just 18 x 19cm, making it as portable as it is powerful.

Titan: DJI Stabilization Evolved

• No one makes camera stabilizers like DJI. Our Titan Stabilization Algorithm captures smoother footage than ever. Need more? SuperSmooth mode compensates for micromovements and increases torque, stabilizing even 100mm zoom lenses.

Feel the Focus

• The Front Dial offers precise focusing in any scenario and single-handed operation.

Dual-Layer Camera Mounting Plate (Manfrotto + Arca-Swiss)

• The Manfrotto + Arca-Swiss dual-layer camera mounting plate is compatible with popular brands. Switch to portrait mode with just a tap to bring professional-grade footage to your social media content.

Built-In OLED Screen

• A 1-inch built-in OLED screen gives you complete control, right at your fingertips.

Battery

• Charge less and shoot longer thanks to RSC 2’s advanced battery, which provides a 14-hour runtime and supports fast charging.

Product Specifications

Accessory Connections

• NATO port
• M4 Mounting Hole
• 1/4”-20 Mounting Hole
• Cold Shoe Mount
• Video Transmission/ Follow Focus Motor Port (USB-C)
• RSS Camera Control Port (USB-C)
• Follow Focus Motor Port (USB-C)

Battery

• Model: RB2-3400mAh -7.2 V
• Type: 18650 2S
• Capacity: 3400mAh
• Energy: 24.48 Wh
• Max Battery Life: 14 hours
• Charging time: Approx. 2 hours to fully charge with 18W fast charging (PD and QC 2.0 fast charging protocols are supported)
• Charging temperature: 5° to 40° C (41° to 104° F)

Connections

• Bluetooth 5.0; USB-C

Ronin App Requirements

• iOS 11 or above
• Android 7.0 or above

Working Performance

• Load Weight (Reference Value): 3.0 kg (Handheld)
• Maximum Controlled Rotation Speed:
• Pan axis: 360°/s
• Tilt axis: 360°/s
• Roll axis: 360°/s
• Mechanical Range:
• Pan axis: 360° continuous rotation
• Roll axis: -240° to +95°
• Tilt axis: -112° to +214°

Mechanical & Electrical Characteristics

• Operating Frequency: 2.4000-2.4835 GHz
• Transmission Power: < 8 dBm
• Operating Temperature: -20° to 45° C (-4° to 113° F)
• Weight:
• Gimbal: Approx. 1216 g (including the battery and excluding Quick-Release Plate)
• Quick-Release Plate (Upper/Lower) Approx. 102 g
• Extended Grip/Tripod (Metal): Approx. 226 g
• Extended Grip/Tripod (Plastic): Approx. 160 g
• Gimbal Dimensions:
• Folded: 260×210×75 mm (including the handle)
• Unfolded: 400×185×175 mm (including the handle and without the Extended Grip/Tripod)

Other

• Warranty: 1 year
• Check your camera compatibility with the Ronin Series Compatibility Search.

What's in the box

DJI Ronin SC 2

• DJI RSC 2 Gimbal Stabilizer
• Mini Tripod / extender (Plastic)
• DJI R Multicamera Control Cable (USB Type-C)
• DJI R Multicamera Control Cable (Sony Multi)
• DJI R Multicamera Control Cable (Micro-USB)
• DJI R Multicamera Control Cable (Mini-USB)
• DJI R Quick Release Plate (Lower)
• DJI R Quick Release Plate (Upper)

For more information please visit dji.com
